HS-5056 HIGH TORQUE METAL GEAR FEATHER SERVO HITEC

About this product

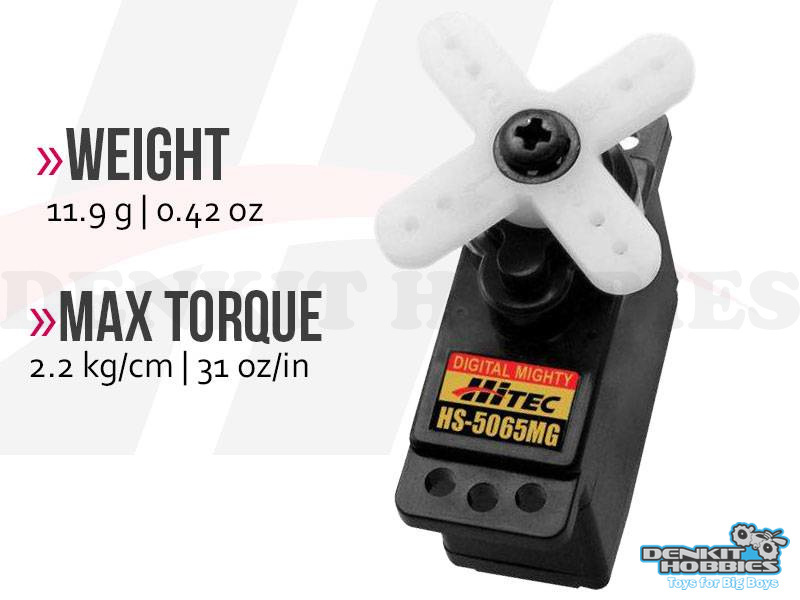

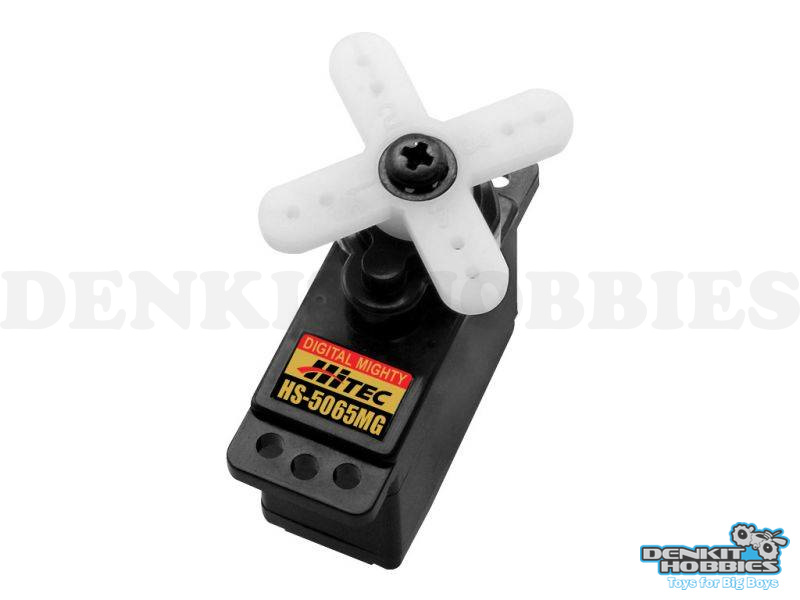

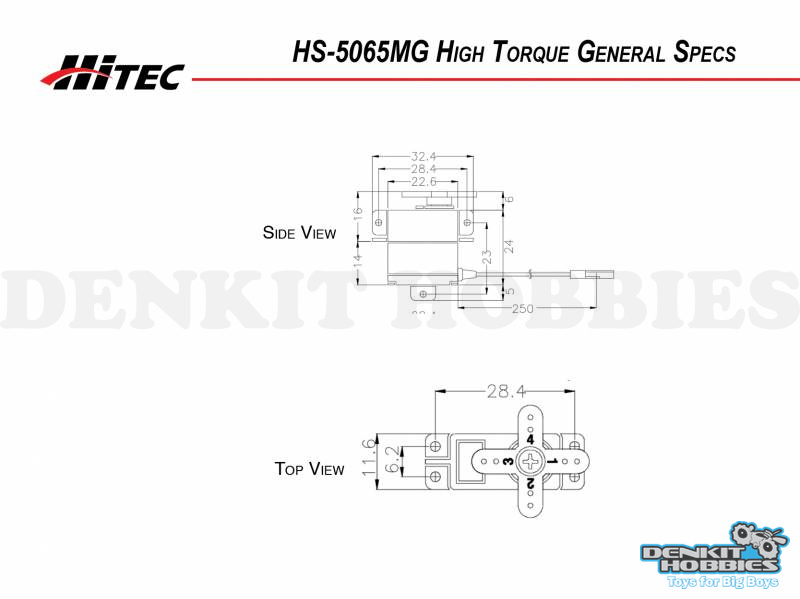

Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec’s digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars. Features • Top Selling Digital Feather Servo • Ball Bearing-Supported Output Shaft • Standard Programmable Digital Circuit for More Holding Power • High Torque and High Speed • Accurate Centering Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset HS-5065MG Servo Specifications Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60°) 0.14 ~ 0.11 Maximum Torque Range oz. / in. 25 ~ 31 Maximum Torque Range kg. / cm. 1.8 ~ 2.2 Current Draw at Idle 3 mA No Load Operating Current Draw 220 mA Stall Current Draw 1,200 mA Dead Band Width 2 µs Physical Specifications Dimensions (Inches) 0.92 x 0.45 x 0.94 Dimensions (Metric) 23.6 x 11.6 x 24.0 Weight (Ounces) 0.42 Weight (Gram) 11.9 Circuit Type G1 Programable Digital Motor Type 3 Pole Metal Brush Neodymium Gear Material Metal Bearing Type Top Ball Bearing Output Shaft (type / Ømm) Micro 23 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20
