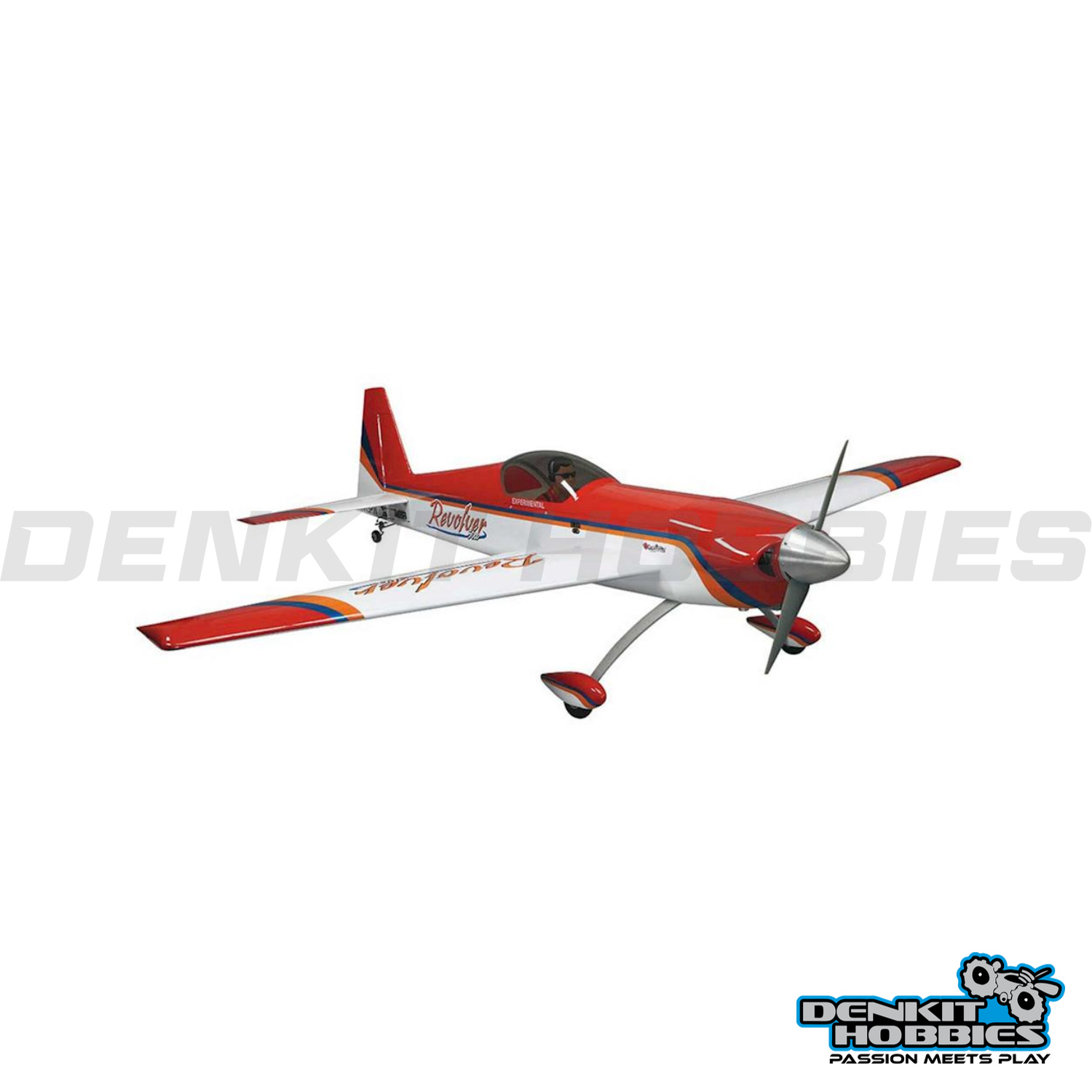

GIANT REVOLVER 50-55CC ARF GREAT PLANES

About this product

This is the Radio Controlled, Gasoline Powered, Almost Ready to Fly Giant 50cc Revolver Airplane Kit from Great Planes. FEATURES Construction: Balsa and ply Covering: Top Flite MonoKote Wings: Two-piece with joiner tube Aileron Control: Dual servo Cowl: Painted fiberglass Wheel Pants: Painted fiberglass Fuel Tank: 24oz (720ml), approximate Engine Mount: Plywood Landing Gear: Two-piece prebent aluminum with two 3.5" (90mm) main wheels and one 1-1/2" (38mm) tailwheel, prebent steel tail gear Spinner: Aluminum, 5" (127mm) diameter Warranty: Great Planes Model Manufacturing Company guarantees this kit to be free from defects in both materials and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification. INCLUDES Prebuilt Wing, Fuselage and Tail Sections, Decals, Spinner, Landing Gear, Fuel Tank, Motor Mount, Engine Mount and Instruction Manual REQUIREMENTS Radio: 4 channel minimum, 6-channel recommended Servos: Five 99 oz/in torque, 2-elevator, 2-ailerons, 1-rudder Two 50 oz/in torque, 1-throttle, 1-optional choke 36" (914mm) Heavy Duty Servo Extensions: Two for elevator servos (one if using dual servo extension) 12" (305mm) Heavy Duty Servo Extensions: Three, two for aileron servos, one for throttle, two if not using Y connectors from receiver to ailerons 6" (152mm) Heavy Duty Servo Extension: One for choke Heavy Duty Dual Servo Lead: Two for elevator and aileron mixing if using 4-ch radio Heavy Duty Switch Harnesses: Two Engine: 50-55cc two stroke Muffler: Wrap around Pitts style Propeller: Follow recommendations for engine Gasoline and building and field equipment SPECIFICATIONS Wingspan: 90" (2285mm) Wing Area: 1303 sq in (84 sq dm) Wing Loading: 34-36 oz/sq ft (104-110 g/sq ft) Weight: 19.5-20.5lbs (8840-9300g) Length: 82.5" (2095mm) Center of Gravity (CG): 7-7/8" (200mm) back from the leading edge of the wing at the fuselage Control Throws: Low Rate High Rate Elevator: (Up & Down) 1/2" (13mm) 6° 3/4" (19mm) 10° Rudder: (Right & Left) 2-3/4" (70mm) 19° 3-1/4" (83mm) 22° Ailerons: (Up & Down) 5/8" (16mm) 12° 7/8" (22mm) 17°
