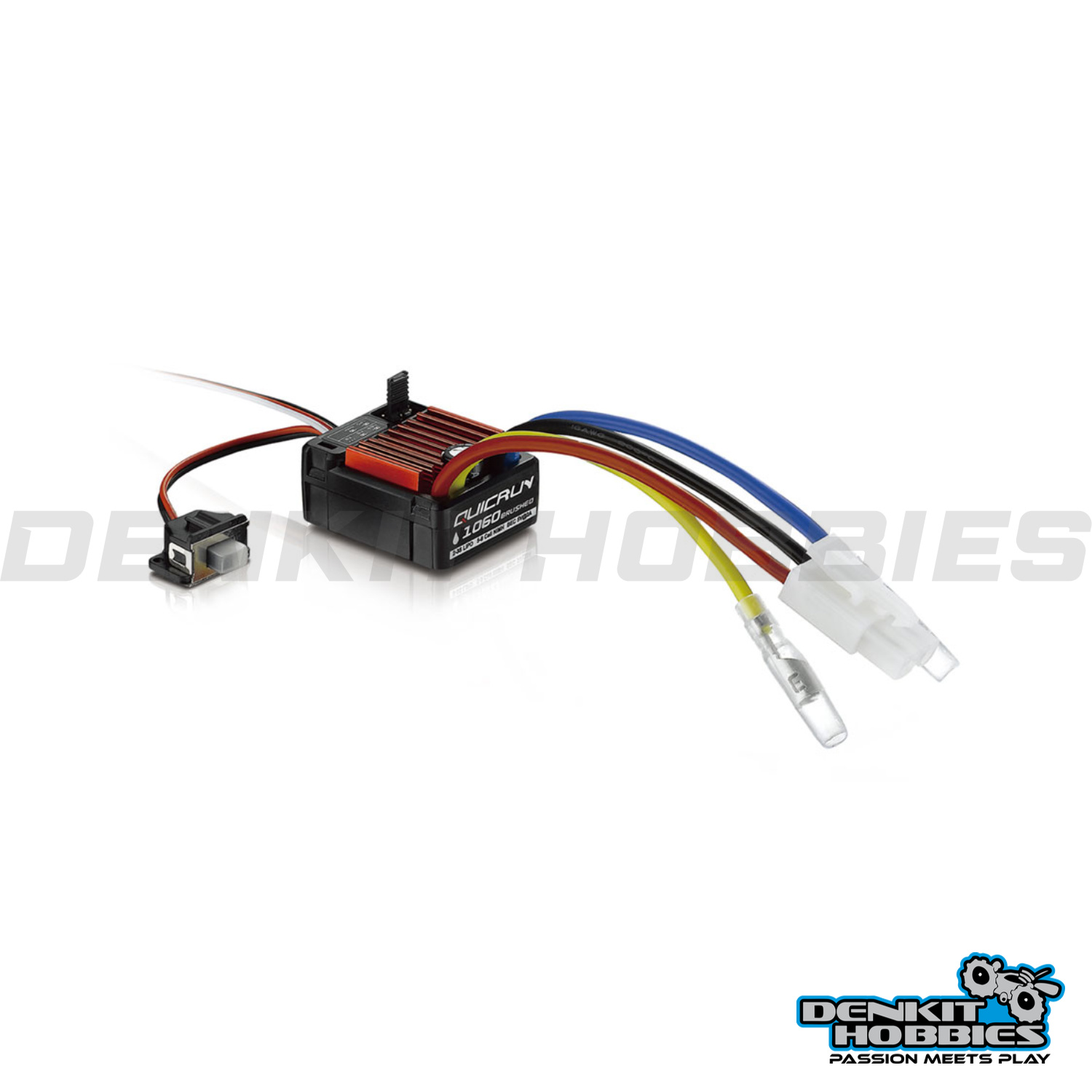

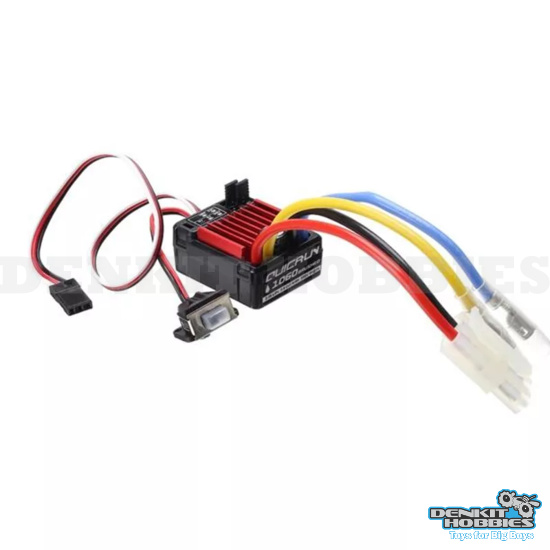

60A BRUSHED QR-1060 ESC 1/10 SCALE HOBBYWING/RGT

About this product

Features: • Water-proof and dust-proof, suitable for all weather races. • Small size, with built-in capacitor module. • Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse). • Great current endurance capability. • Great built-in BEC output capacity. • Automatic throttle range calibration, easy to use. • ESC parameters are easy to set with jumpers. • Multiple protections: • Over Voltage Protection • Low voltage cut-off protection for battery • Over-heating protection • Throttle signal loss protection. Specifications: Fwd Cont. Current /Peak Current/ Resistance: 60A/360A/0.001? Rev Cont. Current /Peak Current/ Resistance: 30A/180A/0.002? Motor Type Supported: Brushed Motor Application: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank Suitable Battery: 2-3S LiPo, 6-9 cell NiMH Brushed Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ?12T, Or RPM<30000 @7.2V 3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ?18T, Or RPM< 20000 @7.2V BEC Output: 2A/5V (Switch Mode) PWM Frequency: 1KHz Size/ Weight: 35.5(L)*32.18(W)*18(H) / 39g Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse Cooling Fan: No need Please note this Esc colours may vary & does not come in a box.
