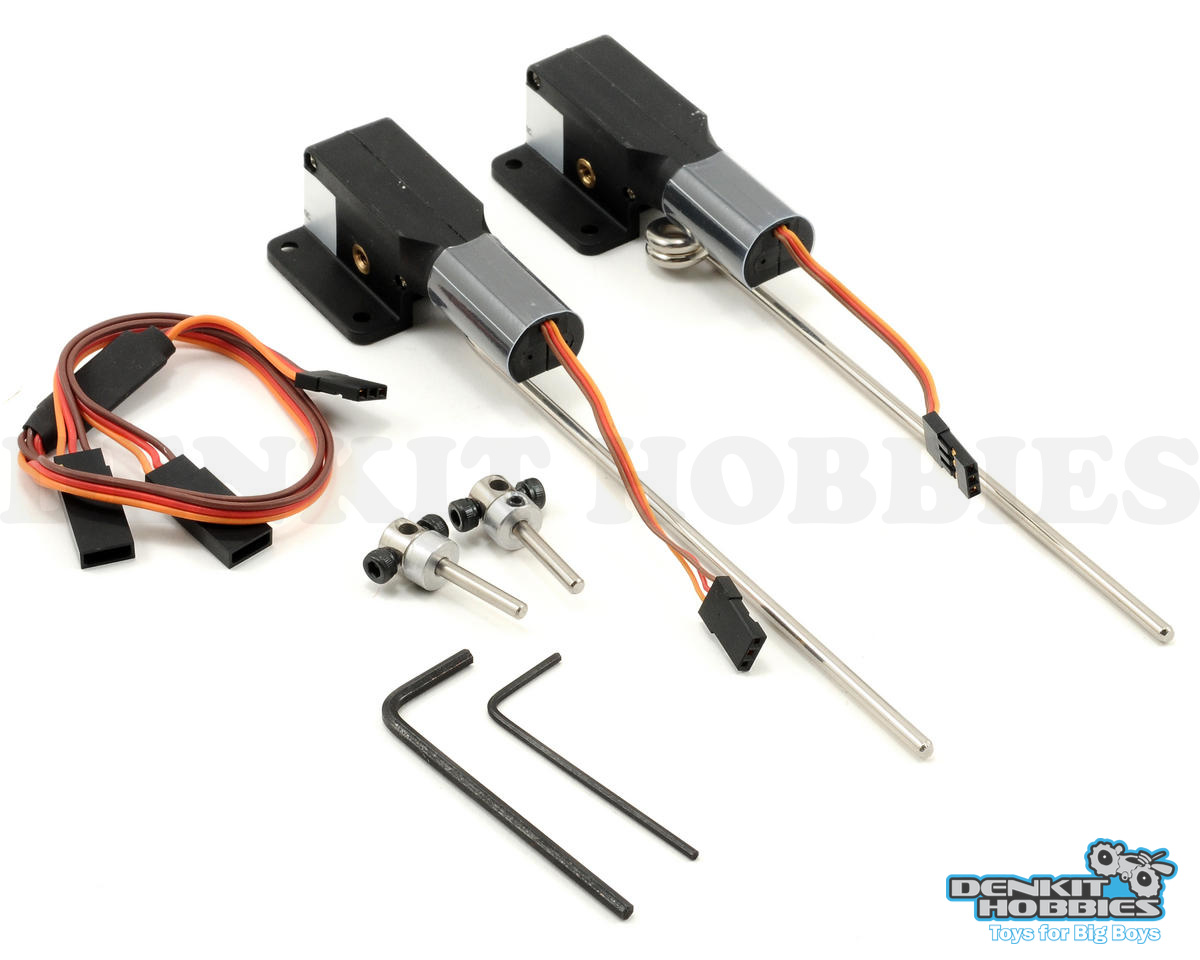

10-15 SIZE ELECTRIC MAIN RETRACT SET EFLITE

About this product

This is the E-flite Main Electric Retract Set, and is intended for use with 10 – 15 Size aircraft that will accept functioning retracts. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially designed Y-harness is included that allows for the use of a single receiver channel to control all retract units. Features: • Robust landing gear strut and mounting bracket • Integrated electric motor with a micro PCB • Built-in over current protection Specifications: Application: Aircraft 10–15 size Aircraft Weight: 2.00 – 4.50 lb (0.90 – 2.00kg) Strut Diameter: .118 inch (3mm) Speed: 4.8V (1.25 seconds), 6.0V (1.0 seconds), 7.4V (.80 seconds) Weight: 3.1 oz (complete set) Motor Type: Electric brushed can Connector Type: JR, universal Gear Type: Metal Current Draw Idle: 5mA Current Draw Stall: 200mA Voltage: 4.8–7.4
